Ekcel
Strand Wave
- Natural material baffles with unique random twirls
- AutoAir feature – automatic airgap at core for superior sound absorption
- An Anutone invention (2014)
| Parameters | Specifications |
|---|---|
| Type | Discrete |
| Finish | Naturals |
| Core | Woodfibre |
| Thickness (mm) | 35 |
| Size (mm) | 600 diameter |
| Density (Kg/m3) | 400 |
| Weight (Kg/m2) | 14 |
| Fire (Class) | 1 & P |
| NRC | na |
| Thermal (W/mk) | 0.07 |
| Termite Attack | Nil |
| Climate (0C, RH) | 50, 95 |
| Light (%) White | 80 |
| Green (VOC, RC%) | Low, 30 |
| Warranty (Years) | 10 |
| Maintenance | Vacuum, Paintable |
| Install Accessories - Ceiling | Skelet T24 bars, Levelling hook, Anchor wire by Anutone. Anchor bolt, soffit cleat, S-hook, fasteners and local hardware by others |
| Remarks | Use Anutone’s recommended system only for best installation results |

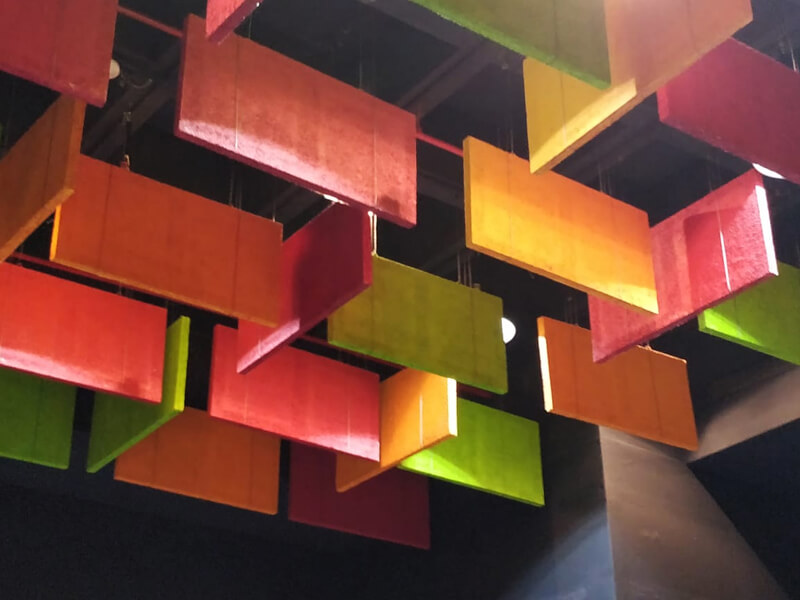

Black Box at American International School Chennai (ASIC) … Strand Wave Colours suspended in a crisscross pattern
